TRU-BEV ARCC High-Pressure Pulse Air Filters

Name: TRU-BEV ARCC High-Pressure Pulse Air Filter
Brand: TRU-BEV

A modular filter family for ventilation dust collection, silo-top dust control, material separation, and other dust-laden air applications.

Review Your Application Request Technical Datasheet

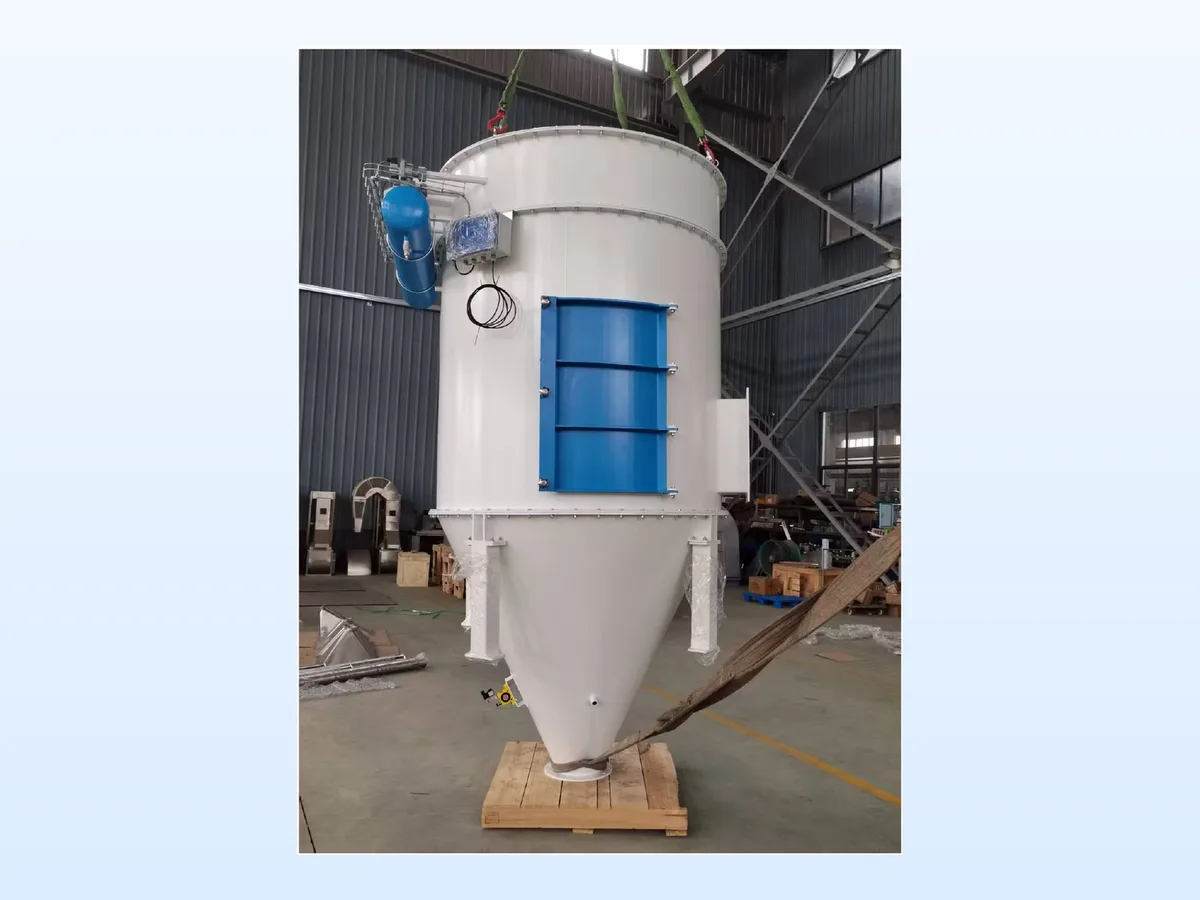

Supplier-provided TRU-BEV high-pressure pulse air-filter unit — Equipment image supplied in the manufacturer brochure; configuration shown is illustrative.

Application overview

Controlled collection for process dust.

Potential applications include dust-laden air treatment, ventilation dust collection, silo-top dust collection, and material separation. Final suitability depends on dust properties and operating conditions.

Ventilation dust collection

Silo-top dust control

Material separation

Indoor or outdoor configurations

Supplier-identified features

Designed for modular filtration and pulse cleaning.

Modular construction across multiple models and configurations
Stainless-steel material-contact components and a stainless-steel filter version
Mechanical differential-pressure gauge identified as standard
Filter-bag options described by the supplier
Supplier-stated dust residue of approximately 5-20 mg/m³, subject to application review

How the system works

01
Tangential inlet
Dust-laden gas enters through the tangential connection.
02
Centrifugal separation
Initial separation occurs through centrifugal action.
03
Filter-bag filtration
Filter elements capture remaining particulate.
04
Pulse cleaning and discharge
Pulse cleaning releases accumulated dust for discharge.

Configuration reference

Confirm every connection during selection.

The supplier diagram uses A, B, C, D, E, F, G, H, J, K, and L for head, bag room, cone, diameters, heights, and inlet/outlet positions. Connection geometry must be confirmed before ordering.

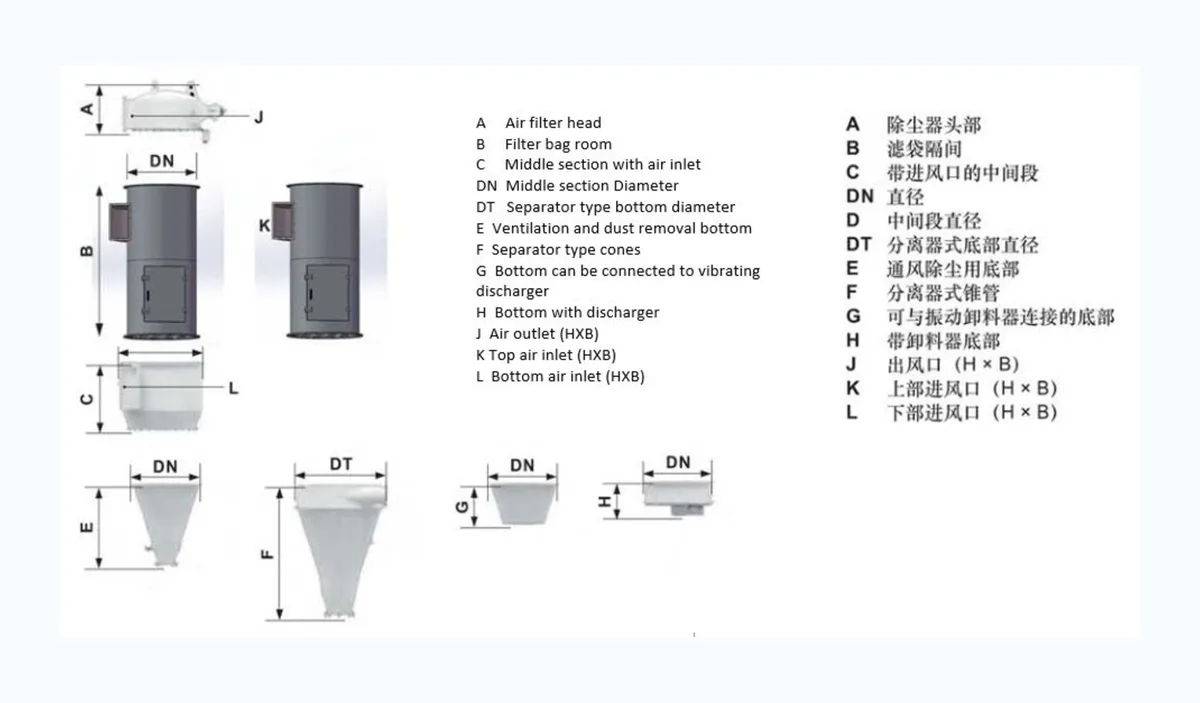

Air-filter configuration diagram showing head, filter-bag room, cone, separator, inlet and outlet reference dimensions — Supplier configuration diagram. Dimensional symbols are retained; final geometry is subject to confirmation.

Model selection data

Supplier model table

Supplier-provided technical data; final selection subject to application and engineering review.

TRU-BEV ARCCY high-pressure pulse air-filter supplier data
Model	Air volume m³/h	Pulse valves	Filter bags	Bag Ø mm	Area m²	Velocity m/min	Outer H mm	Outer D mm	Discharge mm	Top A mm	Cone E mm	Inlet HxB mm	Outlet HxB mm
ARCCY-9-12	480-720	3	9	120	4	2-3	2030	705	150	200	580	240x140	240x140
ARCCY-9-24	960-1440	3	9	120	8	2-3	3230	705	150	240	580	300x220	300x220
ARCCY-16-12	864-1296	4	16	120	7.2	2-3	2350	950	200	240	800	300x180	300x180
ARCCY-16-24	1728-2592	4	16	120	14.4	2-3	3550	950	200	300	800	440x240	440x240
ARCCY-26-12	1410-2115	5	26	120	11.75	2-3	2700	1200	200	300	1050	400x200	400x200
ARCCY-26-24	2820-4230	5	26	120	23.5	2-3	3900	1200	200	400	1050	500x300	500x300
ARCCY-37-12	2112-3168	5	39	120	17.6	2-3	2850	1400	250	300	1200	400x220	400x220
ARCCY-37-24	4224-6336	5	39	120	35.2	2-3	4050	1400	250	400	1200	760x360	760x360
ARCCY-52-12	2820-4230	8	52	120	23.5	2-3	3150	1650	250	300	1500	440x360	440x360
ARCCY-52-24	5640-8460	8	52	120	47	2-3	4350	1650	250	400	1500	860x360	860x360
ARCCY-78-12	4231-6346	8	78	120	35.26	2-3	3550	2000	300	400	1800	500x360	500x360
ARCCY-78-24	8462-12693	8	78	120	70.52	2-3	4750	2000	300	500	1800	900x400	900x400
ARCCY-104-12	5640-8460	11	104	120	47	2-3	3850	2300	300	400	2100	550x360	550x360
ARCCY-104-24	11280-16920	11	104	120	94	2-3	5050	2300	300	500	2100	1000x400	1000x400
ARCCY-130-12	7053-10580	12	130	120	58.78	2-3	4150	2600	350	400	2400	550x380	550x380
ARCCY-130-24	14107-21160	12	130	120	117.56	2-3	5350	2600	350	500	2400	1000x440	1000x440
ARCCY-156-12	8463-12695	13	156	120	70.53	2-3	4550	2900	350	500	2700	700x600	800x460
ARCCY-156-24	16927-25390	13	156	120	141.06	2-3	5750	2900	350	600	2700	1200x700	1260x560

ARCCY-9-12480-720 m³/h

Pulse valves / filter bags: 3 / 9
Filtration area / velocity: 4 m² / 2-3 m/min
Outer H x D: 2030 x 705 mm
Inlet / outlet HxB: 240x140 / 240x140 mm

ARCCY-9-24960-1440 m³/h

Pulse valves / filter bags: 3 / 9
Filtration area / velocity: 8 m² / 2-3 m/min
Outer H x D: 3230 x 705 mm
Inlet / outlet HxB: 300x220 / 300x220 mm

ARCCY-16-12864-1296 m³/h

Pulse valves / filter bags: 4 / 16
Filtration area / velocity: 7.2 m² / 2-3 m/min
Outer H x D: 2350 x 950 mm
Inlet / outlet HxB: 300x180 / 300x180 mm

ARCCY-16-241728-2592 m³/h

Pulse valves / filter bags: 4 / 16
Filtration area / velocity: 14.4 m² / 2-3 m/min
Outer H x D: 3550 x 950 mm
Inlet / outlet HxB: 440x240 / 440x240 mm

ARCCY-26-121410-2115 m³/h

Pulse valves / filter bags: 5 / 26
Filtration area / velocity: 11.75 m² / 2-3 m/min
Outer H x D: 2700 x 1200 mm
Inlet / outlet HxB: 400x200 / 400x200 mm

ARCCY-26-242820-4230 m³/h

Pulse valves / filter bags: 5 / 26
Filtration area / velocity: 23.5 m² / 2-3 m/min
Outer H x D: 3900 x 1200 mm
Inlet / outlet HxB: 500x300 / 500x300 mm

ARCCY-37-122112-3168 m³/h

Pulse valves / filter bags: 5 / 39
Filtration area / velocity: 17.6 m² / 2-3 m/min
Outer H x D: 2850 x 1400 mm
Inlet / outlet HxB: 400x220 / 400x220 mm

ARCCY-37-244224-6336 m³/h

Pulse valves / filter bags: 5 / 39
Filtration area / velocity: 35.2 m² / 2-3 m/min
Outer H x D: 4050 x 1400 mm
Inlet / outlet HxB: 760x360 / 760x360 mm

ARCCY-52-122820-4230 m³/h

Pulse valves / filter bags: 8 / 52
Filtration area / velocity: 23.5 m² / 2-3 m/min
Outer H x D: 3150 x 1650 mm
Inlet / outlet HxB: 440x360 / 440x360 mm

ARCCY-52-245640-8460 m³/h

Pulse valves / filter bags: 8 / 52
Filtration area / velocity: 47 m² / 2-3 m/min
Outer H x D: 4350 x 1650 mm
Inlet / outlet HxB: 860x360 / 860x360 mm

ARCCY-78-124231-6346 m³/h

Pulse valves / filter bags: 8 / 78
Filtration area / velocity: 35.26 m² / 2-3 m/min
Outer H x D: 3550 x 2000 mm
Inlet / outlet HxB: 500x360 / 500x360 mm

ARCCY-78-248462-12693 m³/h

Pulse valves / filter bags: 8 / 78
Filtration area / velocity: 70.52 m² / 2-3 m/min
Outer H x D: 4750 x 2000 mm
Inlet / outlet HxB: 900x400 / 900x400 mm

ARCCY-104-125640-8460 m³/h

Pulse valves / filter bags: 11 / 104
Filtration area / velocity: 47 m² / 2-3 m/min
Outer H x D: 3850 x 2300 mm
Inlet / outlet HxB: 550x360 / 550x360 mm

ARCCY-104-2411280-16920 m³/h

Pulse valves / filter bags: 11 / 104
Filtration area / velocity: 94 m² / 2-3 m/min
Outer H x D: 5050 x 2300 mm
Inlet / outlet HxB: 1000x400 / 1000x400 mm

ARCCY-130-127053-10580 m³/h

Pulse valves / filter bags: 12 / 130
Filtration area / velocity: 58.78 m² / 2-3 m/min
Outer H x D: 4150 x 2600 mm
Inlet / outlet HxB: 550x380 / 550x380 mm

ARCCY-130-2414107-21160 m³/h

Pulse valves / filter bags: 12 / 130
Filtration area / velocity: 117.56 m² / 2-3 m/min
Outer H x D: 5350 x 2600 mm
Inlet / outlet HxB: 1000x440 / 1000x440 mm

ARCCY-156-128463-12695 m³/h

Pulse valves / filter bags: 13 / 156
Filtration area / velocity: 70.53 m² / 2-3 m/min
Outer H x D: 4550 x 2900 mm
Inlet / outlet HxB: 700x600 / 800x460 mm

ARCCY-156-2416927-25390 m³/h

Pulse valves / filter bags: 13 / 156
Filtration area / velocity: 141.06 m² / 2-3 m/min
Outer H x D: 5750 x 2900 mm
Inlet / outlet HxB: 1200x700 / 1260x560 mm

Airflow data treatment

The table above reproduces the supplier's model-specific values in m³/h. A separate brochure narrative states an 8-430 m³/min range; it has not been used as a headline or combined range because the basis and units require supplier confirmation.

Potential industries

Review the dust, process, and installation context.

Potential applications include food and grain, environmental control, chemical and process operations, power and utilities, and silo or storage duties. No hazardous-dust, explosive-atmosphere, sanitary, or food-contact classification is stated.

Share the airflow, dust, temperature, and installation conditions.

ValFlow will help organize application review and model selection. Specifications and availability are subject to confirmation.
